8mm
Hole
Hole
60mm
Surface Floor
Cut a slot 70mm x 34mm
drill a hole in each corner then cut a straight line then tek screw the wheel in place
Hint - cut these wheels in
400 - 600mm in from each end
drill a hole in each corner then cut a straight line then tek screw the wheel in place
Hint - cut these wheels in
400 - 600mm in from each end
74mm
Weight - 0.450kg
Finish - Zinc
Finish - Zinc
20mm
34 mm
36mm

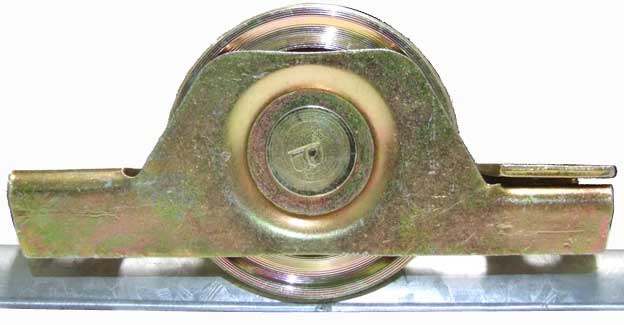

Sliding Gate Wheel 60 Dia
$24.50 each
P/N WH367
Double Bearing
Rated to carry 200kg each
$24.50 each
P/N WH367
Double Bearing
Rated to carry 200kg each

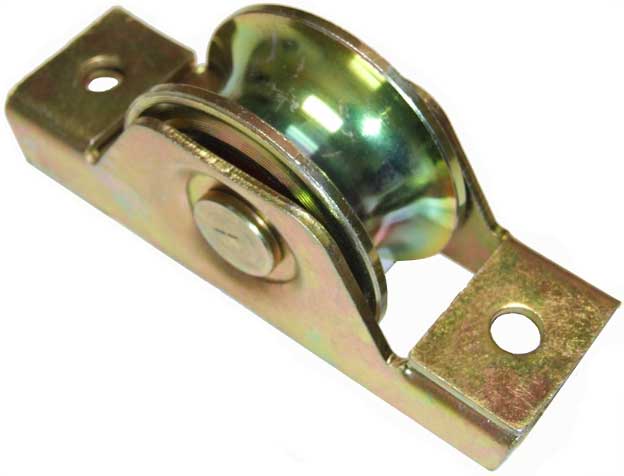

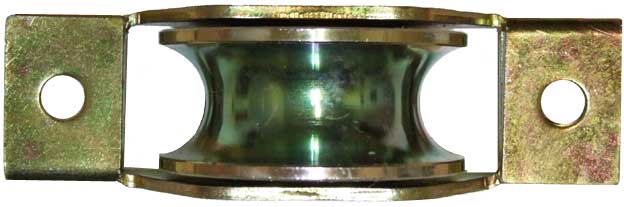

Sliding gate wheel 60mm Internal
These Wheels runs on this type of floor track
34mm
Package Deal with this Wheel and SAVE $$
15mm

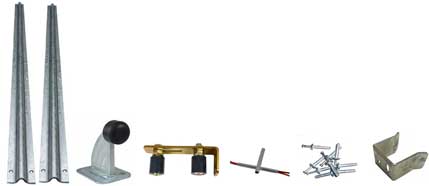

The package includes
60mm Sliding Gate wheel x 2
Floor Track x 2 - 3M
Gate Stopper
Gate Holder
Track joiner
60mm Sliding Gate wheel x 2
Floor Track x 2 - 3M
Gate Stopper
Gate Holder
Track joiner
Related Products
Sliding gate wheel WH367
Step by Step
1. How to join Floor Track
2. Installing the Gate Wheel
3. Double and Single Bearing Wheels
1. How to join Floor Track
2. Installing the Gate Wheel
3. Double and Single Bearing Wheels
56mm
33mm
16mm
120mm
96mm centres
Sliding Gate Wheel 60 Dia
$41.50 Pair
P/N WH368
Double Bearing
Rated to carry 200kg each
$41.50 Pair
P/N WH368
Double Bearing
Rated to carry 200kg each
Per Single
Per Pair
