Reasons why I love this lock
1. 100% stainless steel mechanism
2. Adjustable Day and night bolt
3. Patented "Click-It" system makes tapping tread in the profile unnecessary
1. 100% stainless steel mechanism
2. Adjustable Day and night bolt
3. Patented "Click-It" system makes tapping tread in the profile unnecessary

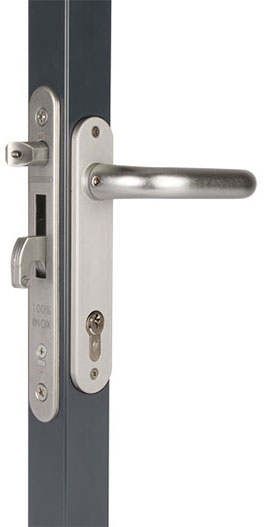

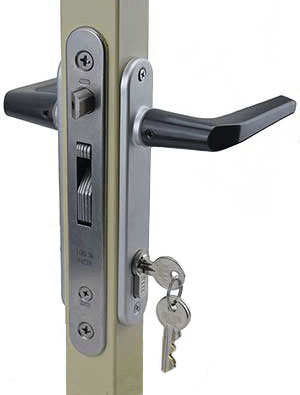

Slimline 40
Fits into 40x40
Both Steel - Aluminum
Note - Handles, Key barrel, Covershield and Keepers are not included with the FK502
To add a Handle Handles Here
To add a Keeper Keepers Here
Or purchase everything a Kit - Go Here
Fits into 40x40
Both Steel - Aluminum
Note - Handles, Key barrel, Covershield and Keepers are not included with the FK502
To add a Handle Handles Here
To add a Keeper Keepers Here
Or purchase everything a Kit - Go Here

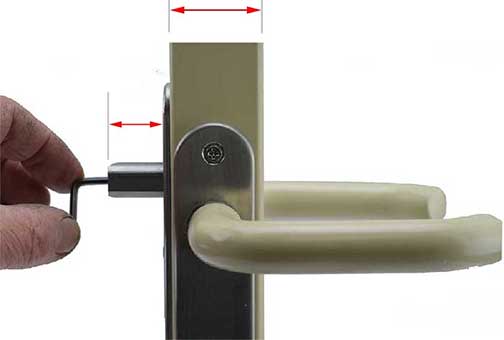

Adjusting the Day Bolt is so easy insert a allen key turn too lengthen turn the opposite way too shorten, 14mm is the start point then you can adjust it out by 10mm to accommodate movement in the gate if required.
Just love this feature.
Just love this feature.
24mm
Max
Max
14
mm
mm
40mm
Fits 40 Tube
20mm Backset or set back
20mm Backset or set back
Handles can be powder coated to most colours, extra charge applies turnaround 24 hrs.
Lockmechanism with cover plate against dirt penetration.
Patented "Click-It" system makes tapping tread in the profile unnecessary.
Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox.
Key-operated self-latching bolt.
Mechanism, hook, frontplate, latchbolt: stainless steel.
Easy left or right changing of the self-latching daybolt.
Stainless steel hook for secure anchoring.
Throw of the hook: 21 mm.
Optional: Cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel.
Patented "Click-It" system makes tapping tread in the profile unnecessary.
Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox.
Key-operated self-latching bolt.
Mechanism, hook, frontplate, latchbolt: stainless steel.
Easy left or right changing of the self-latching daybolt.
Stainless steel hook for secure anchoring.
Throw of the hook: 21 mm.
Optional: Cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel.
Night Bolt
Keeper

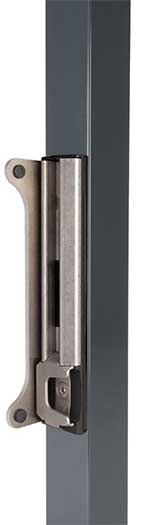

Designed for the 40 Slimline lock this keep can be installed into post in metal or Aluminum, so quick and easy to install simply cut a rectangular slot, drill 2 holes and that's it. So easy and saves time. Available to suit 30 or 40mm tube.
Designed for the 40 Slimline lock this keep can be installed into post in metal or Aluminum, so quick and easy to install simply cut a rectangular slot, drill 2 holes and that's it. So easy and saves time. Available to suit 30 or 40mm tube.
Handles to choose from
Powder Coated to most colours
Except for Stainless Handles
Call our Sales Office to discuss colours
Except for Stainless Handles
Call our Sales Office to discuss colours
Handles and Key barrel is an Extra Cost
see below
see below

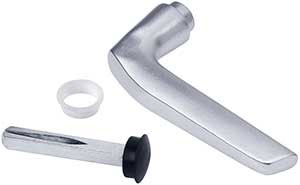

3006I-H

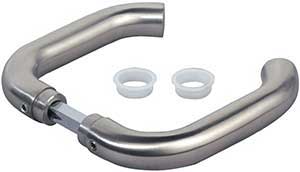

Stainless Steel Handle Spindle 120mm long
Code - GH013 - $52.50
Stainless Steel Handle Spindle 120mm long
Code - GH013 - $52.50

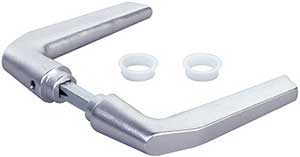

3006M-H
Aluminium Handle -Code - GH011
$39.50 120mm shaft
Aluminium Handle -Code - GH011
$39.50 120mm shaft

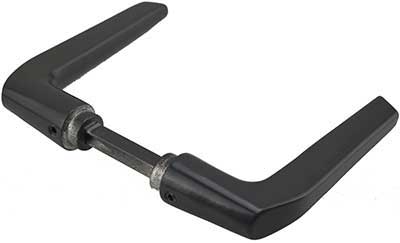

3006I-2
Stainless Steel - Code GH008

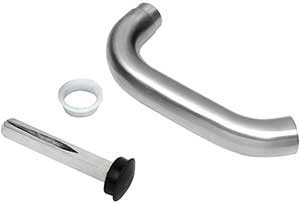

Handle - Half
Stainless Steel - Code GH008
Handle - Half
Suits 40mm RHS tube

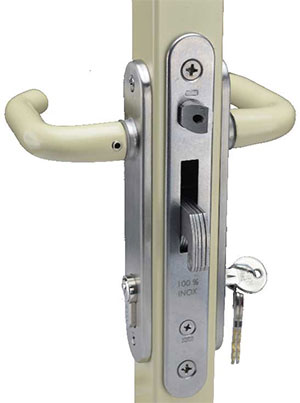

Fits beautifully inside 40x40mm RHS steel or Aluminium

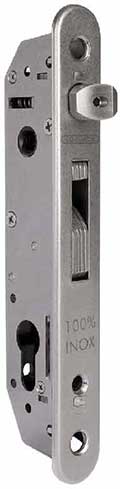

Mortise Lock Only
Code FK502
$79.00
Code FK502
$79.00

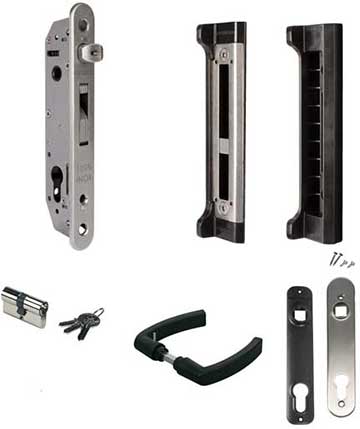

Complete insert lock set with keep for metal, PVC or aluminium gates
Includes
Fortylock
Keep
Cover Plates
Handles - 3006M
Euro key cylinder with 3 keys
Fortylock
Keep
Cover Plates
Handles - 3006M
Euro key cylinder with 3 keys
Code - FK504
$157.00
$157.00
INNOVATIVE FEATURE

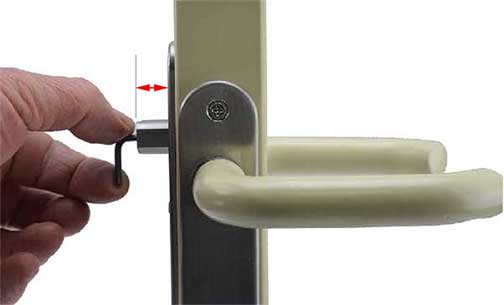

Some of the Great Features of the Slimline FortyLock, Just image if your post or pillar moves no need to relocate the gate by undoing the hinges and moving the gate closer, Too much hard work. Now you can insert a allen key and move the striker in or out.
Some of the Great Features of the Slimline FortyLock, Just image if your post or pillar moves no need to relocate the gate by undoing the hinges and moving the gate closer, Too much hard work. Now you can insert a allen key and move the striker in or out.
Code - FK063
$45.50
$45.50
INSERT STAINLESS STEEL KEEP FOR FORTYLOCK
3006J-H
Aluminium handle pair
Code - GH032 - $42.50 - Shaft 120mm long
Aluminium handle pair
Code - GH032 - $42.50 - Shaft 120mm long

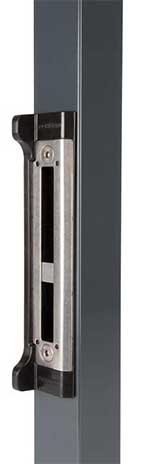

Safe Keeper
Keep for square profiles
Aluminium slam plate with shock rubbers
Innovative mounting with Quick-Fix
To combine with FortyLock
Stainless steel anchoring system
Easy left or right changing
Prevents opening the gate with a crowbar
Adjustable for profiles: 40 - 60 mm
Keep for square profiles
Aluminium slam plate with shock rubbers
Innovative mounting with Quick-Fix
To combine with FortyLock
Stainless steel anchoring system
Easy left or right changing
Prevents opening the gate with a crowbar
Adjustable for profiles: 40 - 60 mm
Code - FK062
$54.20
$54.20

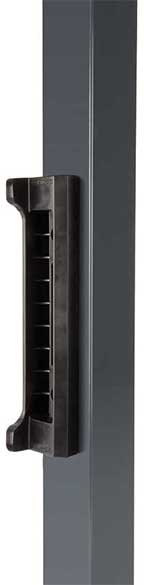

Keeper
Polyamide keep for garden gates. To combine with FortyLock. The Quick-Fix ensures a fast and strong mounting on square posts. For gate-profiles of 40 mm.
Polyamide keep for garden gates. To combine with FortyLock. The Quick-Fix ensures a fast and strong mounting on square posts. For gate-profiles of 40 mm.
Code - FK068
$26.50
$26.50
Related Products
We can Powder Coat your Handle to most Colours
This colour is Monument
add $12 to your Handle
This colour is Monument
add $12 to your Handle
3006M-2
Handle on the inside and a blank on the outside Code - GH009
Handle on the inside and a blank on the outside Code - GH009
We can on request supply a key barrel to suit Lockwood C4 One Key System
Code - LKLB0958
$65.50
$65.50
Forty lock gate tube 40x40 Gal Tube with all the holes already punched just weld it into your gate.
lengths 2000mm
Locinox Forty Lock for Gates
This is a Lock Designed to fit inside 40x40mm Tube Steel or Aluminium
