Steel Fence Rail Brackets 30x30 mm Double Lug
Steel Fence Rail Brackets 40x40 mm Double Lugs
40x40
30x30
Steel bracket double Lugs 30x30 mm double sided
Offset two holes
P/n   BK445
Zinc Finish
Steel Fence Rail Brackets 25x25 mm single Lug
Steel bracket Single Lug 25x25mm single sided
with two holes
P/n   BK430
Zinc Finish
25x25
Steel Fence Rail Brackets 25x38 mm Double Lugs
Steel bracket double lugs
25x50mm double sided
with two holes off sided
P/n  BK465
Zinc Finish
25x38
Steel bracket double Lugs 25x38 mm double sided
with two holes offset
P/n  BK459
Zinc Finish
Pricing & information
Click on
each item
Finish - Zinc
Finish - Zinc
Finish - Zinc
Finish - Zinc
2538black
40x40black1
40x40 Bracket Black
Steel bracket double Lugs
40x40mm double sided
Offset two holes
P/n  BK485
Zinc Finish
Steel Fence Rail Brackets 40x40 mm Single Lug
Steel bracket Single Lug 40x40 mm Single sided
with two holes
P/n  BK495
Zinc Finish
Steel Fence Rail Brackets 25x50mm Single Lug
Steel fencing bracket 25x50 Double Lugs
Steel bracket Single Lug 25x50mm Single  sided
with two holes
P/n  BK463
Zinc Finish
25x50
25x50
Steel bracket Single Lug
25x38 single sided
with two holes
P/n   BK458
Zinc Finish
Steel bracket Single Lug 30x30mm single sided
with two holes
P/n   BK442
Zinc Finish
Steel Fence Rail Brackets 25x38 mm Single Lug
Steel Fence Rail Brackets 30x30 mm Single Lug
Steel Fence Rail Brackets 30x30 mm Single Lug
Steel bracket Single Lug 30x30mm single sided
with One Hole
P/n   BK443
Zinc Finish
30
x
30
30
x
30
Steel bracket double Lugs 25x38mm double sided
with two holes
P/n   BK460
Zinc Finish
Steel Fence Rail Brackets 25x38 mm Double Lugs V
25x38
Tek Screw
Tek Screws - Galvanized -
These screws drill their own hole and then tap threads into the steel to hold your fence bracket to the post. You only need a cordless drill.
Steel bracket Double Lugs  50x25mm Double sided
with two holes
P/n  BK499
Zinc Finish
40x40
Steel bracket Single Lug Black  40x40mm black
Single lug with two holes
P/n  BK496
Powder coated Black
Steel bracket double Lugs 40x40mm double sided
Offset two holes
P/n  BK487
Powder coated Black
25
x
38
Powder Coat - Black
Finish - Zinc
25x38
black tops tek screws
40x40
40x40
25
x
38
Powder Coated - Black
Finish - Zinc
Finish - Zinc
Finish - Zinc
Finish - Zinc
Finish - Zinc
Finish - Zinc
Finish - Zinc
Steel Fence Rail Brackets 50x50 mm Double Lugs
50
x
50
black tops tek screws11

Steel Fencing Rail Brackets


line1
These Fencing Brackets are a quick and easy way to install your fence panels to any post
Used more and more for High security fencing intruders find it hard to undo the screws as they are behind the post
12 G 14x20 Galv P/N TEK003 $0.10 each
Fencing Steel Bracket 50x25 double lug 2 holes - vertical
50x25
Steel bracket Single Lug 25x38 single sided
with two holes
P/n   BK461
Powder coated Black
Pricing & information
Click on
each item
Tek Screws - Galvanized - Black P/N TEK006 $0.15 each
12 G 14x30 Cream P/N TEK008$ 0.20 each
Powder Coated - Black
Steel bracket Single Lug
50x50mm double sided
with two Holes
P/n   BK488
Zinc Finish
Finish - Zinc
Powder Coat your Brackets We can powder coat these steel Brackets to any colour an extra charge applies $0.40 each otherwise stated
fixed fencing bracket03
fixed fencing bracket02
fixed fencing bracket01
Steel post bracket for only 40x40mm Tube ideal for fence panels
Suits 60-75mm Post
won't work on 50x50mm post
give your fence that triple star fencing look

P/n  BK600   -   $2.70 each
Front View
Back View
For all your Fencing Parts Gatesplus is the Masters of Gate Hardware
Fencing brackets come in two forms they are Pressed Steel which is Galvabond and offers protection from rust and the second form of Fencing brackets is Aluminum which is totally rust proof, both brackets adopt to powder coating quite well although steel if preheated come out in front. Fence post are where the bracket is used to hold the panel, They are known as Fence post Brackets, Panel connectors, Panel brackets, Mounting brackets and panel holders. How to install fencing bracket is easy select the right bracket that fit just over the rails always allow a shorter fit never make the panel the exact length between your post or pillars giving you room to lift the panel into place another good idea is to make a 50mm or what ever is required spacers to rest the panel once in place slide the fencing bracket over the rails before installing otherwise you want be able to get them onto the rail after the panel has been lifted into place once this panel is in position slide your fence bracket and drill the holes to take dynabolt or steel pins

How to install  1. Place the steel fencing brackets on the steel panels first, make sure the rails can fit allow a 5mm gap, place a block of timber on the bottom to act as a clearance gap, always secure the top brackets first.

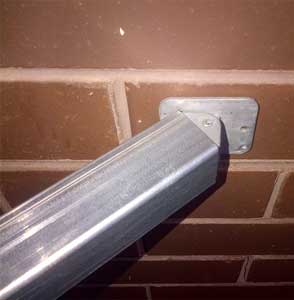

wall fence bracket
Adjustable Bracket
Can be used where a normal steel bracket won't install onto a post or wall at 45 Degrees or less, can be used in a vertical or Horizontal

Fits into

38x25   P/N BK470     $5.20/each


25x25   P/N BK472     $5.20/each


30x30   P/N BK474     $5.20/each


40x40   P/N BK476     $5.20/each


All Steel Zinc plated
