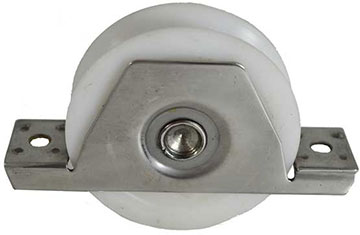

dimension of wh380 nylon sliding gate wheel

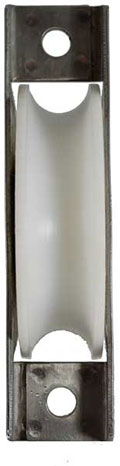

under view of a sliding gate nylon wheel
The wheel is made from High compression Nylon and the bracket is Stainless 308, Ideal where corrosion is a problem.

Rated to carry 100 kgs each wheel.

Colour - White sliding gate wheel
Sliding Gate White Nylon Wheel 90 Dia U Groove Class A  $48.40 each
Code - WH380
Rated to carry 100 kgs
Double Bearing wheel
arrow4
33mm
arrow1
25mm
arrow2
20mm
arrow3
137mm
arrow6
58mm
arrow5
13mm

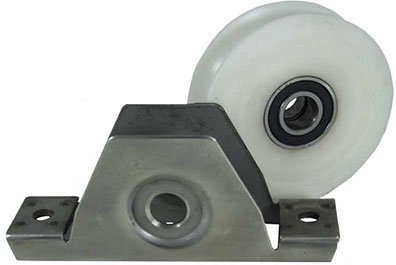

sliding gate wheel dismantled on its own
side view of U floor track
This Wheel runs on this type of floor track
Stainless Steel Housing
Double Bearings
arrow8
Each Wheel capacity
100 Kgs
High compression Nylon
arrow7
arrow9

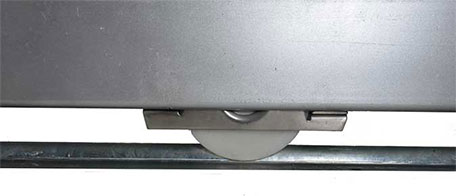

sliding gate inserted to the bottom rail showing clearance
arrow10
26 mm

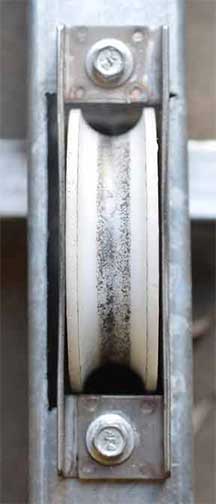

testing a sliding gate wheel
13/10/14
We test everything we sell, this wheel has been on a sliding gate for 6 months and the weight this wheel carried was 192kg
opening 5 times a day, I am a skeptic I thought plastic won't last I even went as far to bet it would have a flat spot on it within 6 weeks, well the wheel turn out to be perfect and I am a believer of this wheel. But in saying this It has a place in the market especially in corrosive conditions by the sea or in certain areas.

The wheel has been re-installed and will testing it further.

closerlook1
Closer Look
Made from High compression Nylon able to carry 110 kgs each wheel
20mm
arrow92
90mm
heigth line
bottom line
arrow11
42 mm
