Sliding gate operator model Max-800.
The Max-800 is a heavy-duty sliding gate operator.
It operates gates of up to 800kg, and has a digital control panel.
The built-in computerized control panel offers digital operation, which is an accurate and reliable electronic operation.
The Max-800 also provides the easiest and the simplest set-up process. With only a press of a button the control panel will automatically set all the timers, power, and adjust the low and high speed of the motor.
Digital power adjustments can also be achieved by using the remote control.
The high security remote control allows the changing of the code, automatically, after each use, to prevent unauthorized persons from duplicating or copying it.
A built-in voltage inverter for setting the ramp up and down speed of the motor is included. This allows the gate to slow down automatically at the end of the closing or opening process, for smooth and safe operation. The life expectancy of the motor and gear is also increased by this.
The advanced computerized control panel learns the operating time-cycle of the gate, and automatically sets its timers to slow down, or speed up, depending on what is required.
For your convenience, the included remote can operate any three different garage doors or gates.
The sealed gearbox prevents corrosion and insects, while dust and rain are kept away and are unable to damage the unit.
The override key allows you to put the motor on manual, in case of an emergency.
Many operations per hour can be achieved due to the 500W heavy-duty motor.
The Max-800 is a heavy-duty sliding gate operator.
It operates gates of up to 800kg, and has a digital control panel.
The built-in computerized control panel offers digital operation, which is an accurate and reliable electronic operation.
The Max-800 also provides the easiest and the simplest set-up process. With only a press of a button the control panel will automatically set all the timers, power, and adjust the low and high speed of the motor.
Digital power adjustments can also be achieved by using the remote control.
The high security remote control allows the changing of the code, automatically, after each use, to prevent unauthorized persons from duplicating or copying it.
A built-in voltage inverter for setting the ramp up and down speed of the motor is included. This allows the gate to slow down automatically at the end of the closing or opening process, for smooth and safe operation. The life expectancy of the motor and gear is also increased by this.
The advanced computerized control panel learns the operating time-cycle of the gate, and automatically sets its timers to slow down, or speed up, depending on what is required.
For your convenience, the included remote can operate any three different garage doors or gates.
The sealed gearbox prevents corrosion and insects, while dust and rain are kept away and are unable to damage the unit.
The override key allows you to put the motor on manual, in case of an emergency.
Many operations per hour can be achieved due to the 500W heavy-duty motor.
Sliding Gate Motors
MAX 800
POWER SUPPLY 230Vac 50Hz
OPERATING TEMPERATURE -25°C +70°C
MAXIMUM GATE’S WEIGHT 800 Kg
TORQUE FORCE 780 N
RATED POWER 300 W
ABSORBED POWER 1,5 A
CAPACITOR 16 uf -
CYCLES PER HOUR 40 %
OUT PUT REVOLUTION 53 g/min
PINION Z14 M4
WEIGHT 12 kg
LUBRICATION PERMANENT GREASING
POWER SUPPLY 230Vac 50Hz
OPERATING TEMPERATURE -25°C +70°C
MAXIMUM GATE’S WEIGHT 800 Kg
TORQUE FORCE 780 N
RATED POWER 300 W
ABSORBED POWER 1,5 A
CAPACITOR 16 uf -
CYCLES PER HOUR 40 %
OUT PUT REVOLUTION 53 g/min
PINION Z14 M4
WEIGHT 12 kg
LUBRICATION PERMANENT GREASING
The Slider 450 is able to operate gates of up to 450kg, and it has a built-in back-up battery for maintaining operation even during power failures!
For your convenience, the Slider 450 comes with 3 different remotes for operating roller or garage doors.
Any gate equipped with the Slider 450 automatically slows down at the end of the closing and opening process, for safe and smooth operation.
The computerized control panel automatically learns the operating time-cycle of each gate, and programs itself to slow down at the end of closing and opening.
This kit also comes with high quality 4.6m aluminum racks, to prevent rust and to provide reliable operation! Dust, rain and insects are not a problem either, due to its sealed casing.
All the features mentioned above protect the Slider 450 from most damage, and ensure a long lasting operation!
Users may choose from two models of operation: automatic or semi-automatic.
There are three preset built-in timers in the Slider 450. Each offers a different closure delay starting from 10s and ending with 50s.
The Slider 450 comes with two override keys and a state of the art control panel.
For your convenience, the Slider 450 comes with 3 different remotes for operating roller or garage doors.
Any gate equipped with the Slider 450 automatically slows down at the end of the closing and opening process, for safe and smooth operation.
The computerized control panel automatically learns the operating time-cycle of each gate, and programs itself to slow down at the end of closing and opening.
This kit also comes with high quality 4.6m aluminum racks, to prevent rust and to provide reliable operation! Dust, rain and insects are not a problem either, due to its sealed casing.
All the features mentioned above protect the Slider 450 from most damage, and ensure a long lasting operation!
Users may choose from two models of operation: automatic or semi-automatic.
There are three preset built-in timers in the Slider 450. Each offers a different closure delay starting from 10s and ending with 50s.
The Slider 450 comes with two override keys and a state of the art control panel.
Design - Fabrication - Installation - Repair - Service - Sales - Maintenance - Spare Parts
We Ship Australia Wide
1300 121 666
Sliding Gate Motors

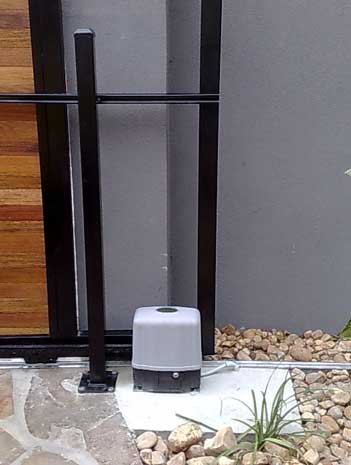

Duraslide 500 - $880
MAX. GATE LENGTH 11m
MAX. GATE MASS 500 Kg
MAX OPENINGS* 120 per day
SPEED 20m per minute
MOTOR 120 Watt 12V dc
TRANSFORMER 16V AC 1 amp
BATTERY CHARGE
VOLTAGE 13.8vDC
LIMIT DETECTION Digital Programming, Shaft
MAX. START UP
FORCE 20 KgF
MAX. GATE LENGTH 11m
MAX. GATE MASS 500 Kg
MAX OPENINGS* 120 per day
SPEED 20m per minute
MOTOR 120 Watt 12V dc
TRANSFORMER 16V AC 1 amp
BATTERY CHARGE
VOLTAGE 13.8vDC
LIMIT DETECTION Digital Programming, Shaft
MAX. START UP
FORCE 20 KgF
Italian Made
$746.35

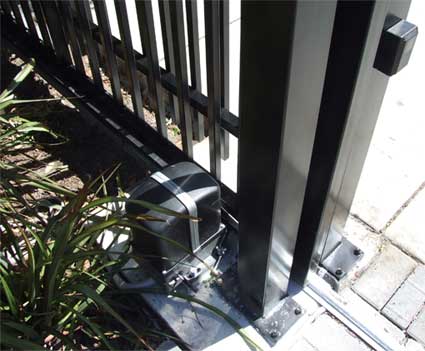

Low Voltage Model - SL500DC
Comes with
3mtrs Rack 2 Remotes
Backup Battery
Control Box
Low Voltage Power Pack
Can run up Garden lighting wire up to 60 mtrs from power outlet
$746.35
Low Voltage Model - SL500DC
Comes with
3mtrs Rack 2 Remotes
Backup Battery
Control Box
Low Voltage Power Pack
Can run up Garden lighting wire up to 60 mtrs from power outlet
Max 800 (240V) $765.00
