The operator is mounted to the gate and gate pier by fixing brackets. Fixing positions depend on the size of the gate and the type of the gate pier.

Built-in backup battery for power fail operation.


Manual release design for emergency purpose.

Self-locking at any position.

Second speed for soft stop

Maximum Gate Weight 300kgs(660 lbs.)
Maximum Gate Length 3.6M(12feet)
Operator Linear Speed 18ą10% mm/sec(no load)
15.9mm/sec (with load 65kgs)
Stroke Length 365mm(14.6 inch)
Maximum Leaf Swing 120° 90°
Operating Current 2A
Motor Power 12VDC Power Supply
Available 120V ACą10% 60Hz
230V ACą10% 50Hz
Approx. Dimension 80mmx80mmx1235mm
Approx. Weight 6.5kgs
The Model GP560 swing gate Motor is designed to be operated with new or existing gate up to 300kgs weight / 3.6 meters wide
GP560 Single with a
Solar KIt
The model 560 operator is mounted inside the gate and gate leaf direction can be both inward or outward.
The operator is mounted to the gate and gate pier by fixing brackets. Fixing positions depend on the size of the gate and the type of the gate pier.
Built-in backup battery
for power fail operation.

GP560 Linear Gate Motor
GP560 Double with a
Solar KIt

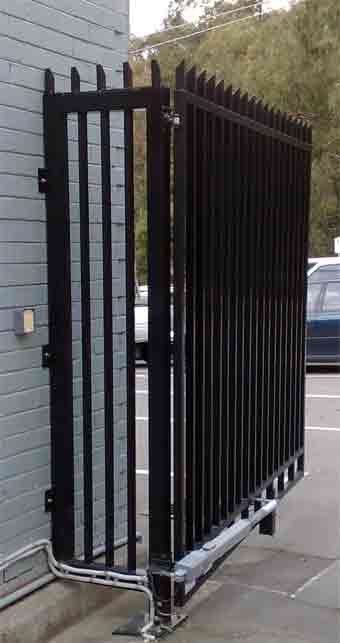

Linear Gate Motor in a outward opening sitution
Access your Gate and Garage Door from the same remote
Unit only $72.00
GP560 Double AC $1170
GP560 Double DC $1300
GP560 Single AC $910
GP560 Single DC $1100
