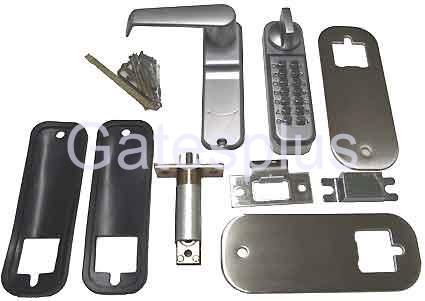

parts of a lock

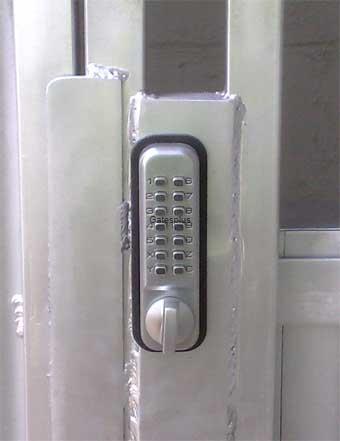

A Digital lock mounted in a security Gate
Carbine digital lock
Carbine Digital Lockset
[] digital Lockset
[] includes internal lever handle or digital both side *extra cost
[] 60mm latch bolt
[] includes all components for fitting
[] heavy Duty Satin Chrome Finish
[] suits both right and left handed Doors & gates
[] suits new and retrofit applications
[] easily changeable user codes
[] easy-grip outer knob

$278.00   P/N FK520
Postage Aust $12
USA & UK $46
weight 1.66 kg
lock diagram
Download Brochure on the Digital Lock
carbine logo
Keyless Entry for Doors and Gates
Requires no Power
The Carbine digital is innovative by the way that it makes improvements to a standard product. It is a robust code changeable (from the back of the digital pad) mechanical digital lock and is the most flexible digital on the market. There are many different models to choose from. There is the NK2000 which fits on to timber doors with an internal lever handle. The NK2000-2 model will fit with Lockwood 002 deadlatches and with either Legge L9MFS or Lockwood 3572 commercial mortice locks (internal furniture not included). You can also purchase a dual pad model (NK2000-KDSC) if a digital pad is required on each side of the door. Finally to showcase the lock, display stands are also available either for in shop purposes or for use on site. Features include:

[] Should only be used in light to medium traffic areas. Not for use in high volume commercial areas
[] It is ideal for storerooms and similar areas that don't have high volume traffic
[] Comes with a 2 hour fire rating for NK2000SC model with use of a supplied latchset
[] Backset is 60mm standard, 70mm and 127mm backsets available as an option
[] Supplied with a reversible internal lever handle that allows fitting to left or right handed opening doors
[] Easy to change user codes via removal of the back cover
[] Easy grip outer knob that is larger than many other similar digital products
[] Comes with a 64mm wide stainless steel backing plate that will cover up any holes or scratches from previously fitted locks
[] Suits new and retrofit applications with everything provided in the package
[] Includes all components and instructions for fitting and combination changing
[] This lock has been cycle tested and exceeds 25,000 openings.
[] Available in the finish of satin chrome
[] NK2000SC suits a 45mm thick door when using trim plates, suits 50mm thick doors without use of trim plates
